Place of Origin: | China |
Nazwa handlowa: | JVT |
Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
Model Number: | JVT2032 |
Minimum Order Quantity: | 1000 PCS |
---|---|
Cena: | Negotiation |
Packaging Details: | PE bag packing +outer carton |
Delivery Time: | 7-10 working days |
Payment Terms: | T/T or Western Union |
Supply Ability: | 300000 per month |
equivalent: | JST | pitch: | 2.0mm |
---|---|---|---|
feature: | highly reliable contact | poles: | 2-16 |

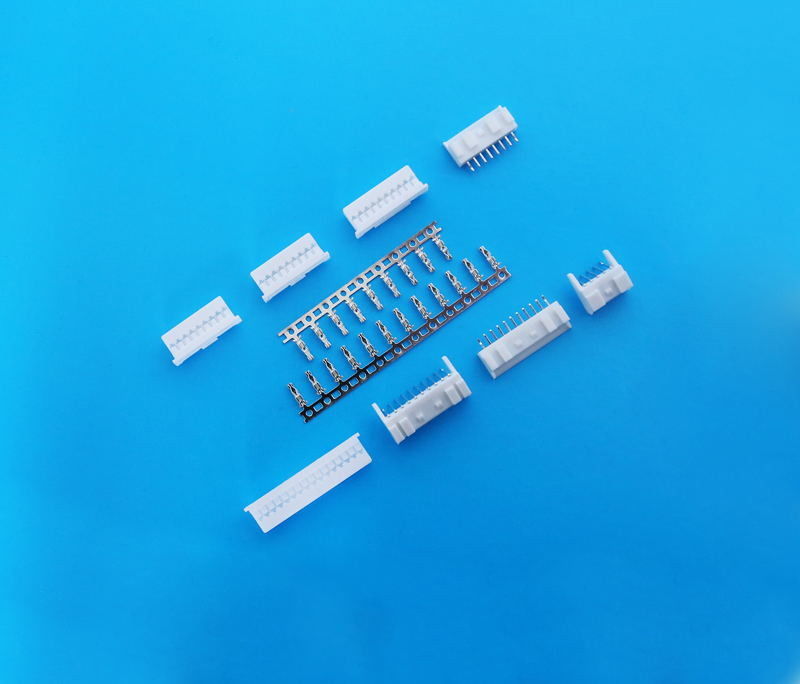

2.0mm pitch connector with secure locking device ,10 poles ,JVT2032 PA series
Product Profile | ||||||||
|
Standardized Specification:
Pitch: 2.0mm
Poles: 2-16
Voltage rating: 250V AC/DC
Current rating: 2.5A AC/DC
Withstand voltage: 1500V AC/minute
Working temperature: -25°C to +85°C
Insulation resistance: 1000MΩ Min
Contact resistance: 20MΩ Max
Specification on Material:
Terminal: |
Phosphor Bronze ,Tin plated |
Housing: |
PBT UL 94V-0 |
Wafer: |
PA66 UL94V-0 |
PIN: |
Brass ,Gold plated |
JVT offer a complete range of board to board and board to wire connectors including :pin header ,mini jumpers,female header ,PCB Multipole and housing a wide range of applications including :industrial ,Medical and automotive .
All are offered with small moq's ,the majority being stocked items .
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
