| Place of Origin: | China |
| Nazwa handlowa: | JVT |
| Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT2005 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Cena: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| pitch: | 2.0mm | equivalent: | AMP |
|---|---|---|---|
| applicable wire: | 22 - 28# AWG | poles: | 2 - 15# |

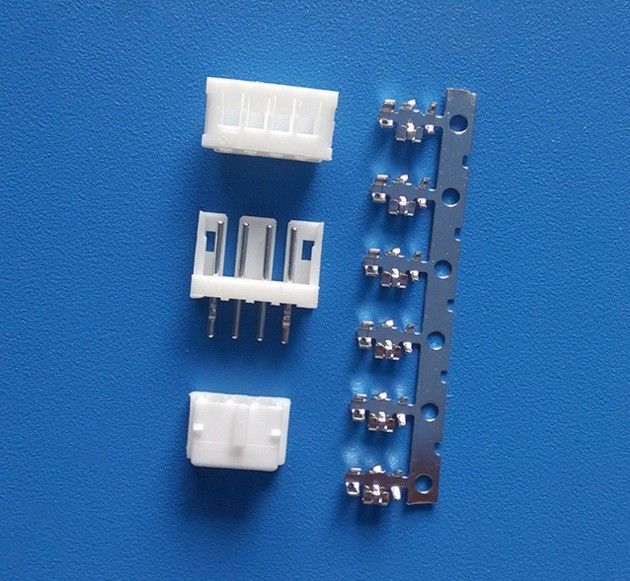

SGS / UL / ROHS Electronic Cable Connectors , AMP Wire to Board Crimp Style Connectors
Material Specification :
Terminal Phosphor Bronze ,Tin plated or Gold plated
Housing PA66,UL94V-0
Wafer Nylon 66 UL94V-0
PIN Brass,Gold /Tin plated
2.0mm Pitch for Wire to Board Connector Equivalent with AMP Style
Standardized Specification:
|
Scale |
2.0mm |
|
Cables |
2-15 |
|
Applicable wire |
AWG # 22 - 28 |
|
Rating Voltage |
250V AC/DC |
|
Rating Current |
2A AC/DC |
|
Withstand voltage |
800V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
