| Place of Origin: | China |
| Nazwa handlowa: | JVT |
| Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1127 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Cena: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Pitch: | 1.25mm | Color - Resin: | Gray |
|---|---|---|---|
| Application: | Signal, Wire-to-Board | Category: | Crimp Housings |
| Type of Row: | Dual Row | Poles: | 20-40 |

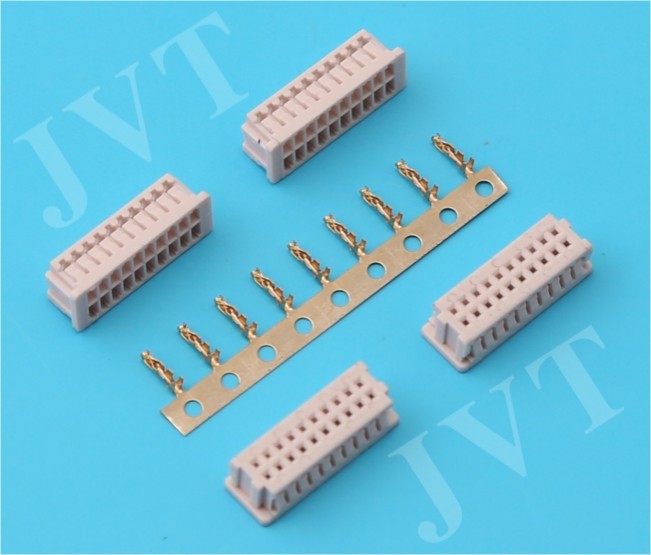

Dual Row pcb Wire to Board Connector with 20 - 40 Poles 3A AC/DC Rating Current
JVT supply equivalent molex P/N 51127-2005 , 1.25mm Pitch Wire-to-Board Housing connector , Dual Row, 20 Circuits,UL94V-0
Specification Standardized:
|
Pitch |
1.25mm |
|
Poles |
20-40 |
|
Applicable wire |
AWG 20-32 |
|
Rating Voltage |
1000V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
20MΩ Max. |
Material Specification :
Housing: PA66,UL94V-0
PIN: Brass,Gold plated
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
