| Place of Origin: | China |
| Nazwa handlowa: | JVT |
| Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT0504 |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Cena: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| contact space: | 0.5mm | No. of contact: | 10-30 |
|---|---|---|---|
| connector type: | bottom contact | Insulation resistance: | 100 megohms min. |

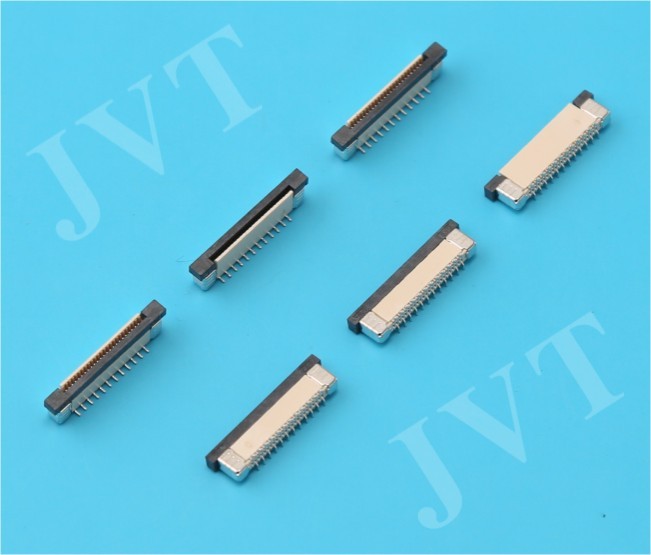

0.5mm pitch 10 pin ZIF FPC connecto for PCB Board Electrical Connector with 180 Degree 1.5mm Height SMT type
Specification Standardized:
|
Pitch |
0.5mm |
|
Poles |
10-30 |
|
Applicable wire |
#22-30 |
|
Rating Voltage |
500V AC/DC |
|
Rating Current |
3A AC/DC |
|
Withstand voltage |
500V AC/minute |
|
Operating temperature |
-40°C to +85°C |
|
Insulation resistance |
800MΩ Min |
|
Contact resistance |
20MΩ Max. |
Applicable FFC/ FPC thickness: 0.3mm +/- 0.03mm, ZIF structure bottom-surface connection type.
Material Specification :
Housing: PA66,UL94V-0
PIN: Brass,Gold plated
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & techinology team
puntual delivery time and complete packaging process
preferable price and best quality
