| Place of Origin: | China |
| Nazwa handlowa: | JVT |
| Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1001WN2-XXSNK-D |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Cena: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | PCB Board Wafer | Application: | PCB Board Connector |
|---|---|---|---|
| Orientation: | Vertical | Number of PIns: | 5 |
Material Specification:
Terminal: Phosphor Bronze or Brass ,Tin plated
Housing: PA66,UL94V-0
Wafer: Nylon 66 UL94V-0
PIN: Brass ,Tin plated

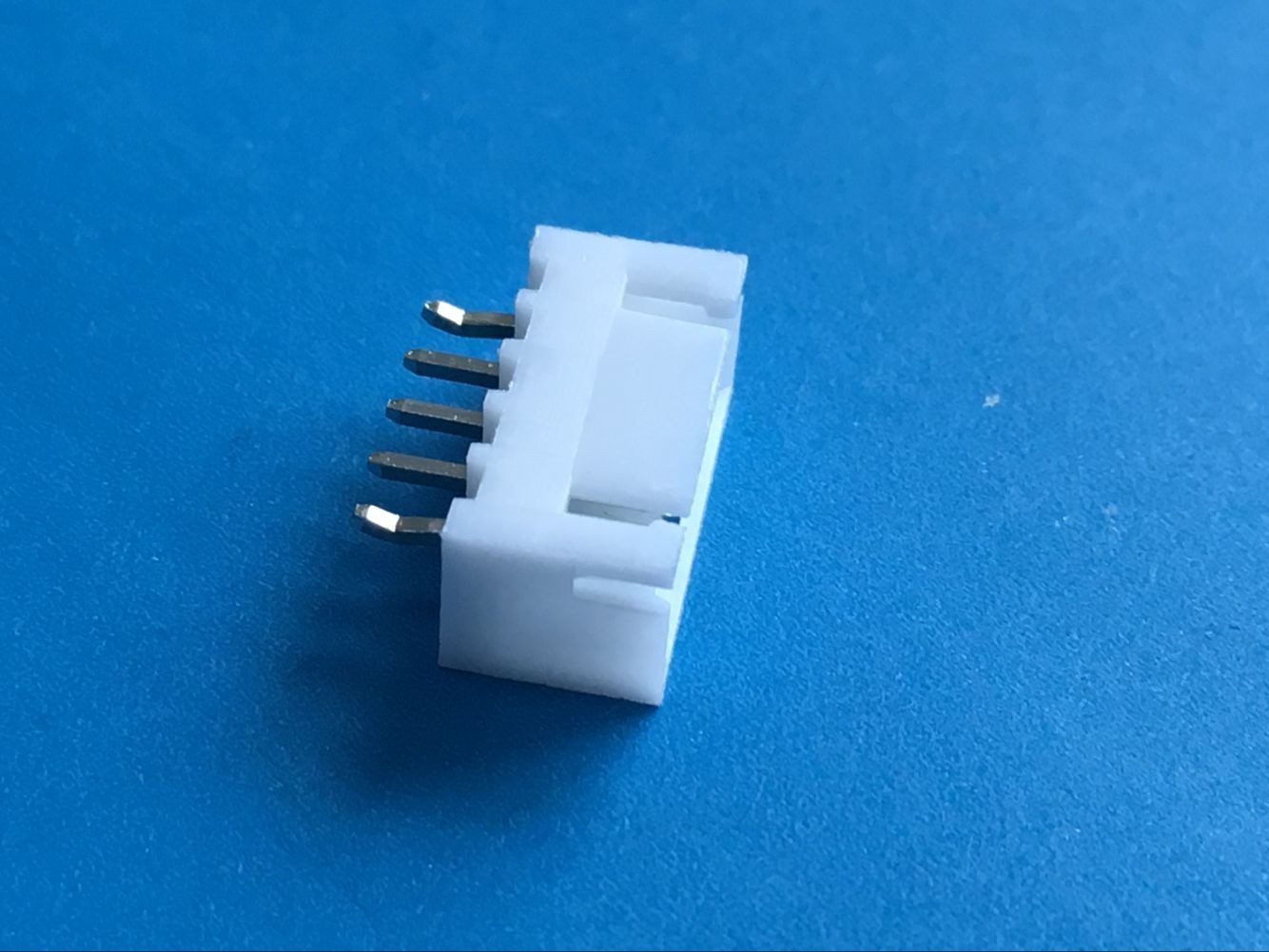

JVT 2.5mm Pitch Wafer for PCB Board Electrical Connectors With Five Pins in White Color
Application Area:
Cell Phone
Table Computer
Lighting
Standard Specification:
|
Pitch |
2.5mm |
|
Contacts |
5 |
|
Applicable wire |
AWG#18-22 |
|
Voltage rating |
250V AC/DC |
|
Current rating |
3A AC/DC |
|
Withstand voltage |
1000V AC/minute |
|
Working temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
10MΩ Max |
Drawing
Our advantage
|
Favorable unit price
|
|
Strict quality control
|
|
Shortest lead time
|
|
Professional team( from Tool esigning stamping,Injection molding assembling,Testing to packing)
|
|
Accelerated equipments:10 automated injection molding
20 automated pin - setting
6 high precision stamping machines
|
