| Place of Origin: | China |
| Nazwa handlowa: | JVT |
| Orzecznictwo: | ISO9001/SGS/UL/ROHS/Reach |
| Model Number: | JVT1150WN2-02SN-D |
| Minimum Order Quantity: | 1000 PCS |
|---|---|
| Cena: | Negotiation |
| Packaging Details: | PE bag packing +outer carton |
| Delivery Time: | 7-10 working days |
| Payment Terms: | T/T or Western Union |
| Supply Ability: | 300000 per month |
| Category: | Wire to Board Crimp style Connectors | Cross part: | Molex 4.2mm |
|---|---|---|---|
| Type: | DIP Type, Right Angle | PC board mounting direction: | Top entry, Side entry |
| Color: | White | Poles: | 2*1-2*12 |

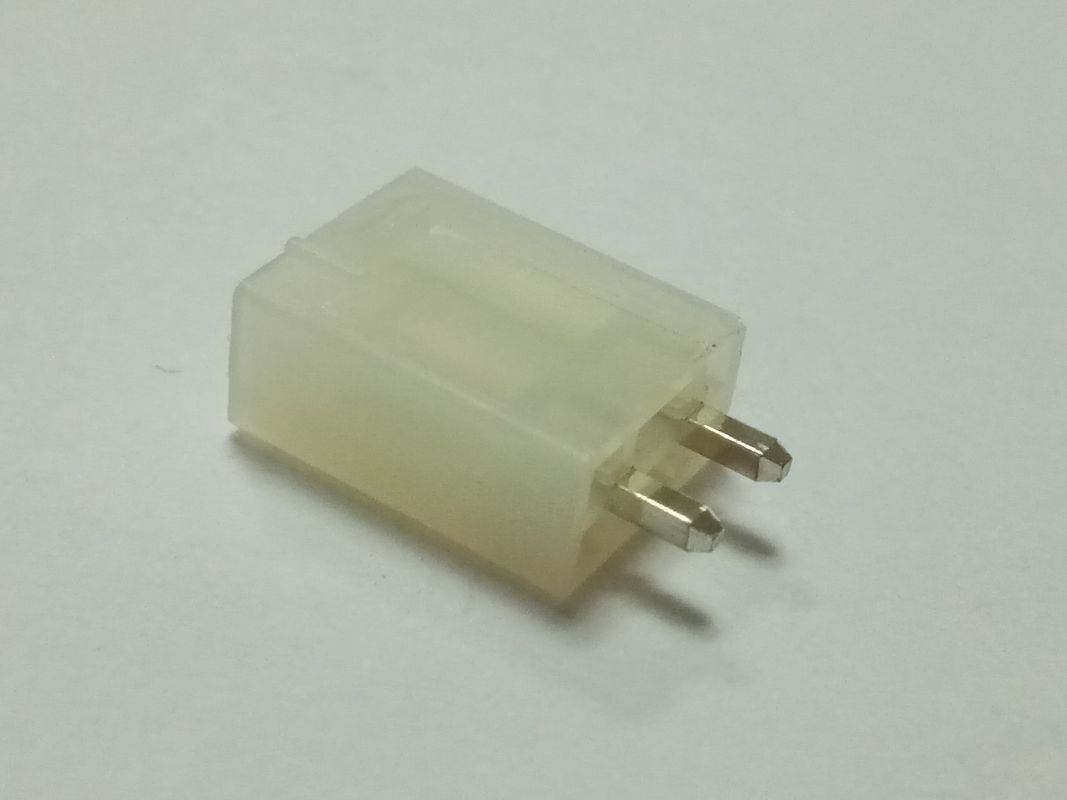

Equivalent of Molex 4.2mm, Tin-plated Right Angle, DIP Wafer Connector, Wire to Board
Drawing
Standardized Specification:
|
Pitch |
4.2mm |
|
No.of contact |
2*1-2*12 |
|
|
|
|
Rating Voltage |
250V AC/DC |
|
Rating Current |
7A AC/DC |
|
Voltage Withstand |
1500V AC/minute |
|
Operating temperature |
-25°C to +85°C |
|
Insulation resistance |
1000MΩ Min |
|
Contact resistance |
10MΩ Max. |
Payment Details:
Payment Terms:T/T or Western Union
Minimum Order:1000 Pieces
|
|
Equipment and Service:
10 automated infection molding,20 automated pin-setting and 6 high-precision stamping machines
prefessional and patient pre-service & after-service
professsional sales team & engineering team & technology team
puntual delivery time and complete packaging process
preferable price and best quality
